Dynamic speckle imaging

IIL develops dynamic speckle imaging, which analyzes speckle from dynamic scattering to measure the dynamics of a sample, such as blood flow, with standard image sensors.

Summary

We analyze speckle produced by dynamic scattering to measure the dynamics of a sample. When laser light enters living tissue, moving red blood cells make the speckle pattern fluctuate, at a rate set by the flow speed. Measuring the fluctuation directly usually requires cameras running at more than ten thousand frames per second. Rolling-shutter speckle imaging (RSSI) uses the row-by-row exposure of CMOS sensors, in which successive rows are exposed microseconds apart, so that a single frame records the speckle dynamics. With elongated speckles and a physical model, one frame gives both the flow speed and the fraction of moving scatterers. Applications include cerebral blood-flow mapping, pulse waveforms at the fingertip and real-time analysis with physics-guided neural networks.

Code, data and patents

  • Codegithub.com/IIL-SNU/RSSISingle-shot temporal speckle correlation imaging using rolling shutter image sensors. Yi et al., Optica 2022.
  • DataRSSI in vivo mouse brain speckle imagesRaw single-shot rolling-shutter speckle images of mouse cerebral blood flow (two imaging sessions) used in the RSSI paper, the data cited in its data availability statement.
Moving scatterers inside a sample change the speckle pattern over time; the rate of change reflects how fast they move. IIL (conference presentation)
Simulated rolling-shutter speckle for slow and fast flow: the rows are read out one after another, so slowly changing speckle stays correlated along the readout direction and fast-changing speckle decorrelates. C. Yi et al., Optica 2022

Projects

6 projects

2022–2023

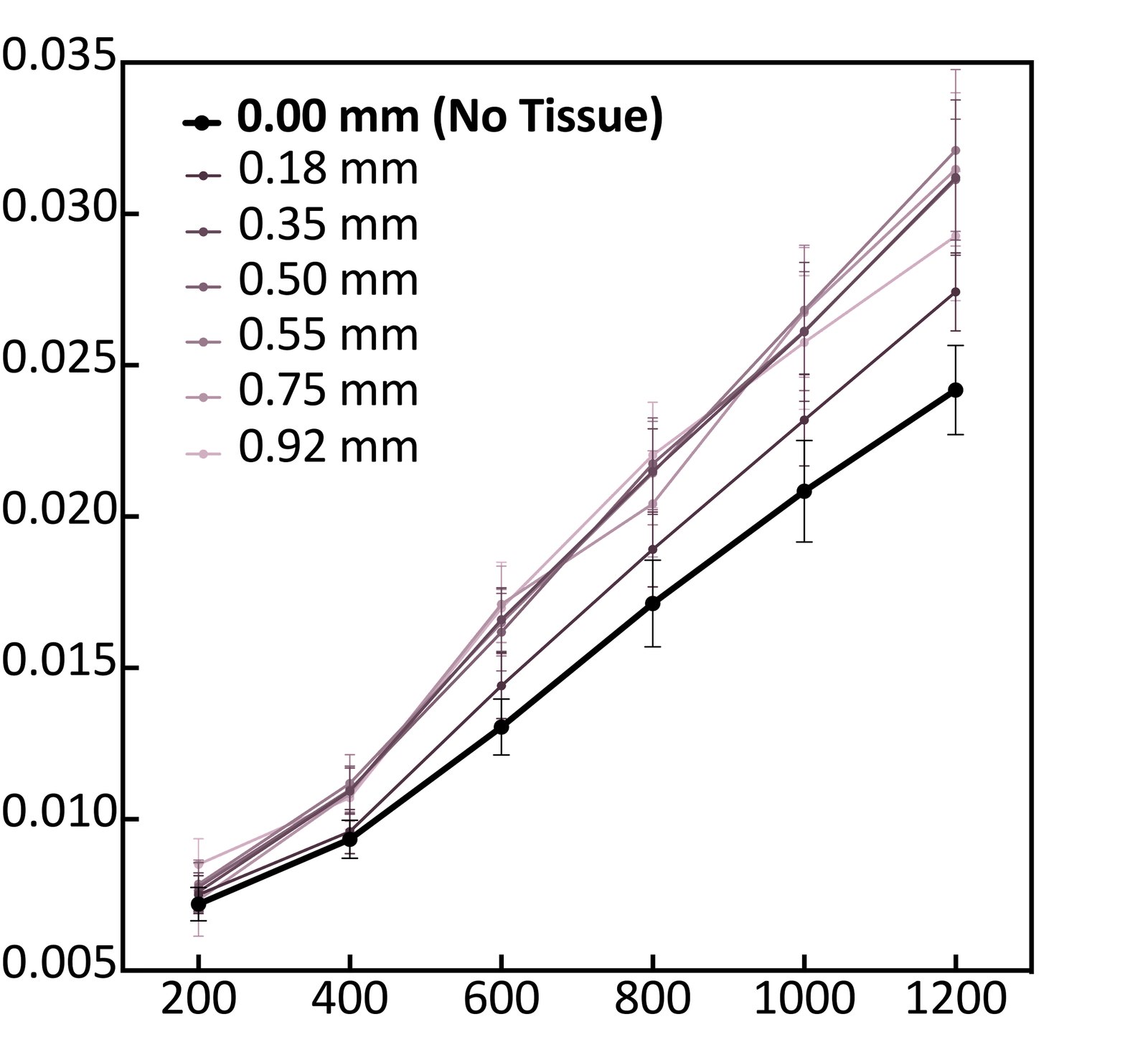

Rolling-shutter speckle imaging (RSSI)

Laser speckle imaging maps blood flow without dyes, but quantitative measurements require following how the speckle decorrelates over microseconds, which normally means costly cameras running above ten thousand frames per second. RSSI instead uses the row-by-row exposure of CMOS sensors, in which successive rows are exposed microseconds apart.

View on the research page

2023–2024

A complete spatiotemporal speckle-correlation model

A single RSSI frame becomes a measurement only once we know how the row-by-row correlation should behave for a given flow, in tissue where moving blood is mixed with static scatterers. Our first model assumed an instantaneous exposure, but real sensors integrate light for longer than the delay between rows.

View on the research page

2023–2024

Rolling-shutter speckle plethysmography (RSSPG)

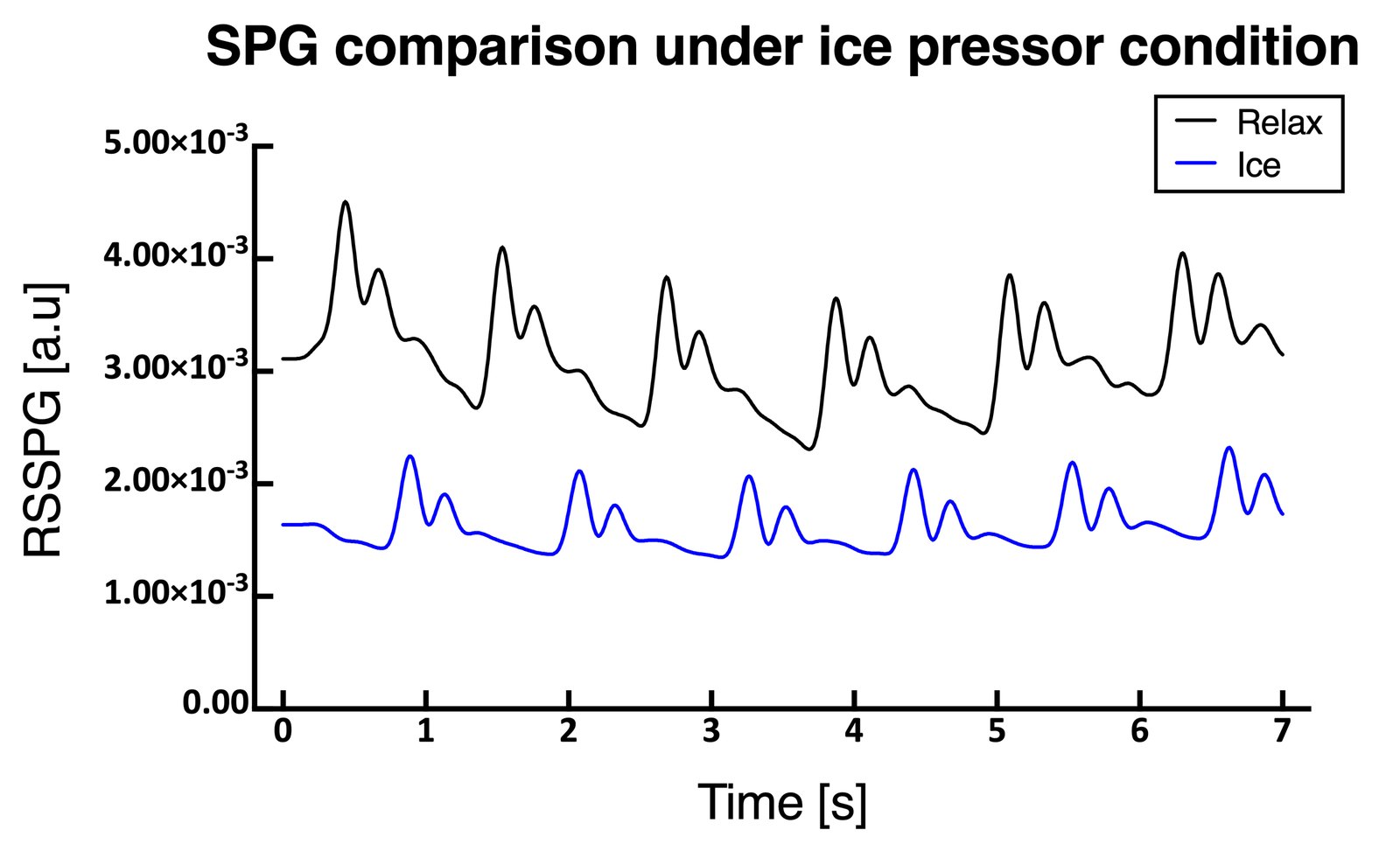

Photoplethysmography (PPG), the green light on the back of a smartwatch, tracks how much blood lies under the sensor but not how fast it moves. RSSPG applies rolling-shutter speckle imaging to a sequence of frames of a fingertip and extracts, frame by frame, both the decorrelation time, which follows flow speed, and the dynamic scattering fraction, which follows blood volume.

View on the research page

2024–2026

Physics-guided neural networks for real-time speckle imaging

Single-shot RSSI trades statistics for speed: each map is estimated from relatively few speckle grains, so pixel-wise curve fitting is both noisy and slow. Averaging many frames reduces the noise but gives up the time resolution of single-shot imaging.

View on the research page

2025–, ongoing

Speckle-based eye-movement tracking

Fast eye movements, from saccades to the tiny microsaccades made while fixating, carry information about attention and neurological health, yet capturing them usually calls for high-speed cameras. We are extending rolling-shutter speckle imaging to the eye: laser light scattered from the white of the eye (the sclera) forms elongated speckles on a rolling-shutter sensor.

  • S. Byun et al., “Rapid eye movement detection via rolling shutter speckle imaging,” SPIE-ABC 2025, Jeju (poster)

View on the research page

2025

Deep-tissue blood flow with massively parallel DCS

Speckle fluctuations also reveal blood flow far below the surface. Diffuse correlation spectroscopy (DCS) measures how laser light flickers after diffusing through centimeters of tissue, but in adults the light that reaches the brain, beneath scalp and skull, returns faint and noisy.

View on the research page
